Boiling flask: 20L
Heating temperature: ambient to 300℃
Cooling temperature: -5℃ ~ 85℃
Vacuum pump: around 5 Pa(optional diffusion pump to 0.1 Pa)
Vessel material: 3.3 borosilicate glass
Insulation jacket
| Model | 20L | |
Material | Borosilicate glass 3.3 | |
Heating temperature | Ambient to 300℃ | |
Working pressure | Around 5 pa | |
Distillation vessel | Volume(L) | 20 |
Interface specification | 24/40 joint , 2*34/45 joint | |
Receiving vessel | Volume(L) | 4*2000ml |
| Interface specification | 24/40 joint | |
| Cold trap | Dry ice volume(L) | 2 pcs*1L |
Heating mantle | Heating power(W) | 3000 |
Roating speed(r/min) | 50-1800 | |
Motor power(W) | 40 | |
Dimension(W*D*H mm) | 515*515*340 | |
Inner sleeve diameter(mm | 374 | |
Inner sleeve depth(mm) | 215 | |
Vacuum pump | Model | ZXZ-2 |
Pumping rate(CFM | 15 | |
Ultimate vacuum | Better than 5 pa | |
Cooling circularor | Model | DLSB-05-15 |
Cooling temperature | -5℃~85℃ | |
Thermally conductive liquid | Anhydrous ethanol or ethylene glycol: water=55:45 | |
General | Voltage | 110V 60Hz or 220V 50/ 60Hz 1-phase |

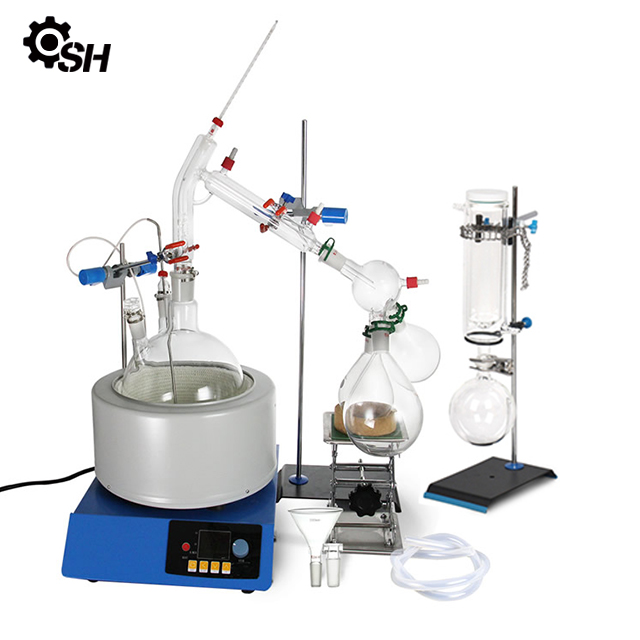

2L Short Path Distillation Kit
